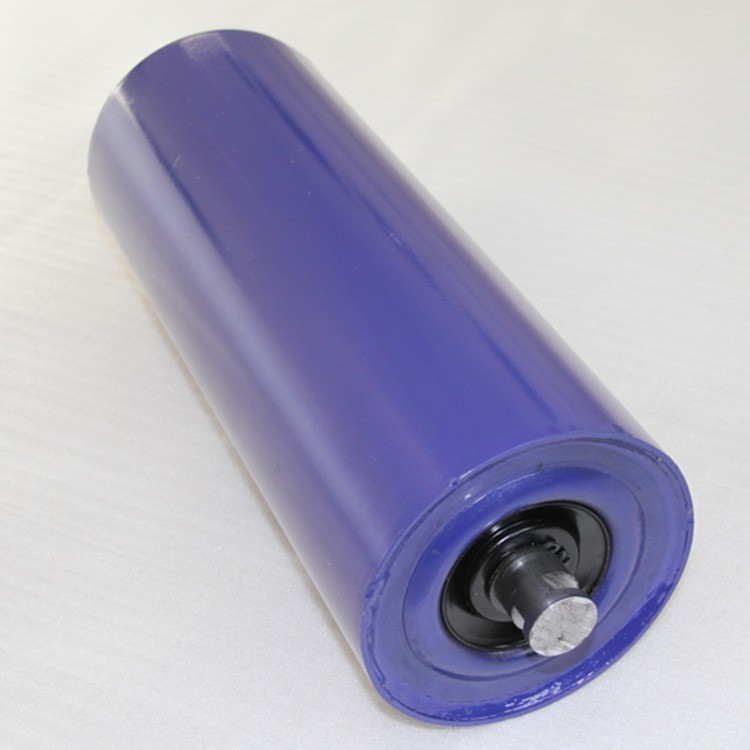

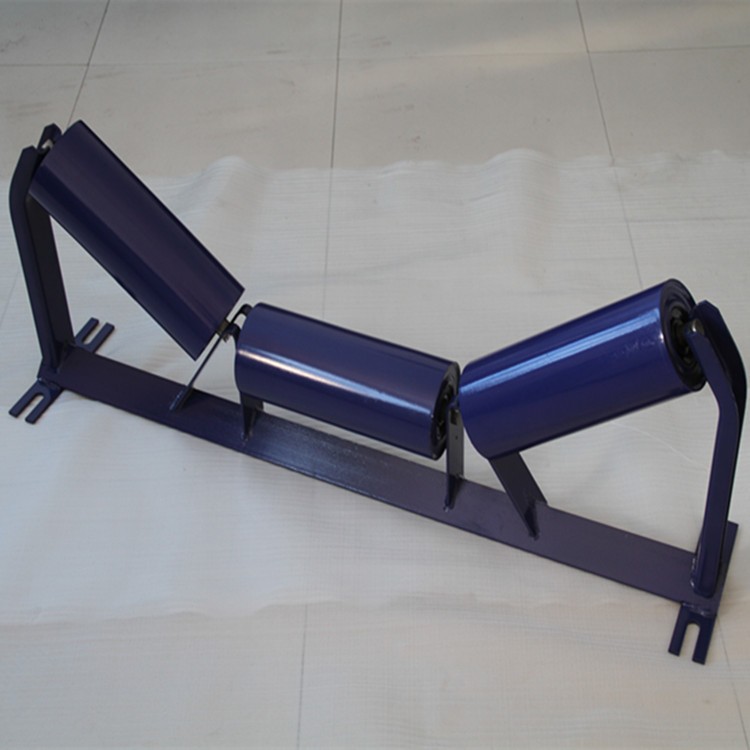

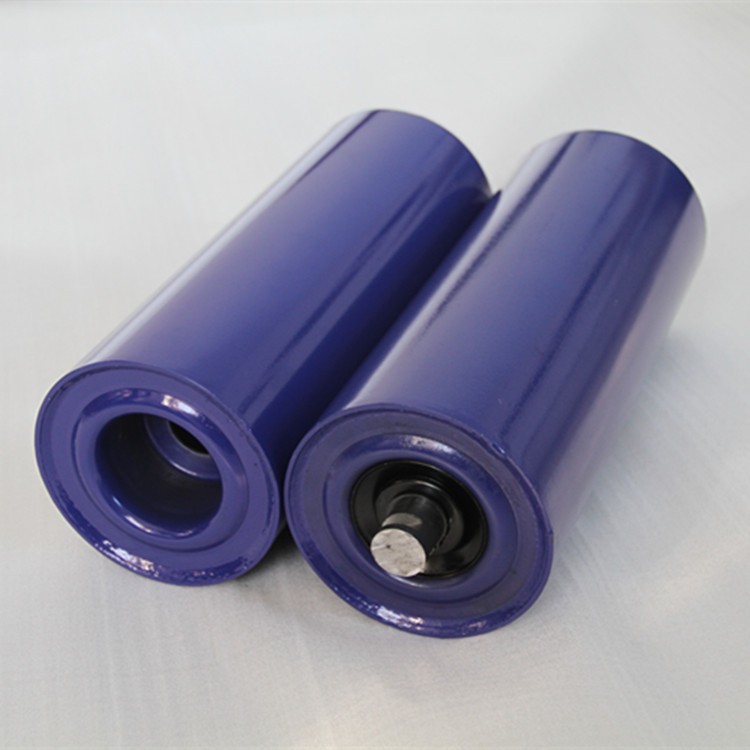

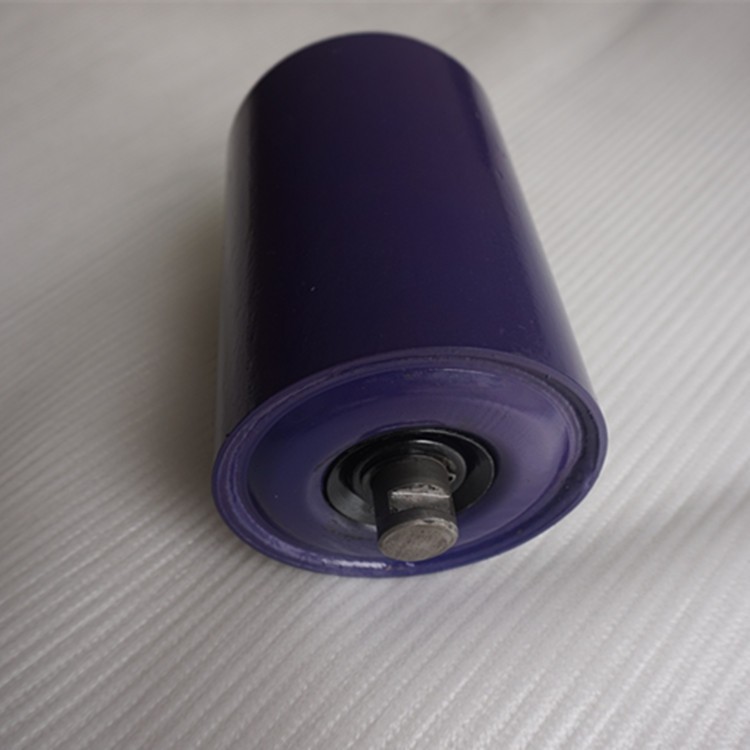

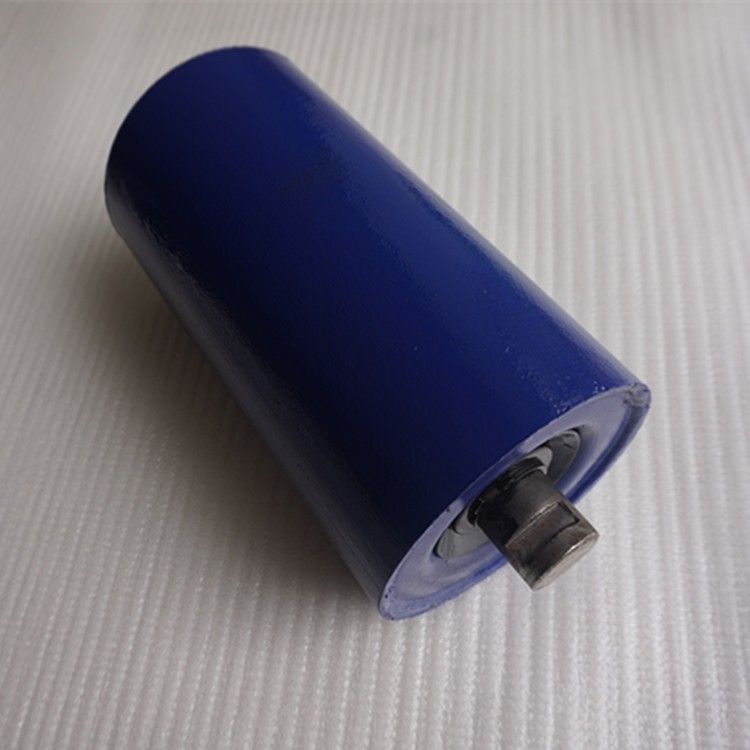

Roller is an important component of belt conveyor.It has many kinds and large quantity,can support conveyor belt and material weight.

Product Specification
Model NO.	Steel roller
Diameter	89-159mm
Length	190-1500mm
Material	Carbon steel
Seal	Multiple labyrinth seal
Bearing type	Deep Grove ball bearing
Gurantee	12 months
Color	Customized
Certificate	ISO,CE
Advantages	waterproof,dustproof,smooth running,no noise,rotational resistance, axial float, shaft radial play

Features:

A) Bearing: deep groove ball and double sealing bearing 2RZ and 2Z with C3 clearance;

B) Sealing: multi-stage labyrinth seals achieve waterproof and dust proof

C) Lubrication: Grease is Lithium soap type grease with Rust Inhibitors, grease is permanent lubricant.

D) Color: roller surface could be painted any color as per customer request.

E) Each roller would be through strict inspection and test to ensure every out coming roller is of true high quality;

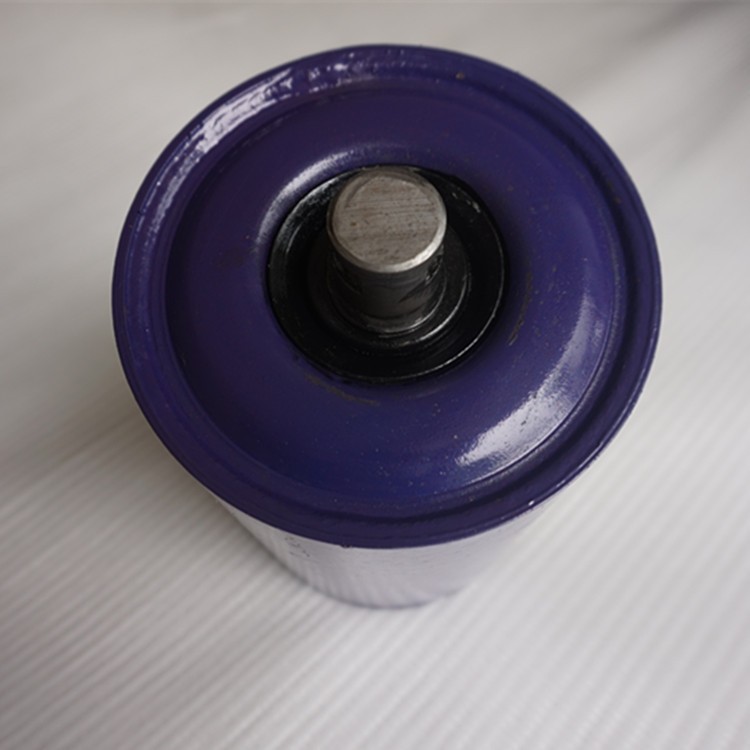

1. Seal assembly
The seal assembly of idler is made of nylon, and the structural from is non-contact labyrinth seal structure.
The inner and outer seals from a labyrinth passage with high precision, and the passage is filled with long-acting lithium-based grease, so that the idler has good waterproof and dustproof performance.

2. Bearing
The bearing of Idler adopts special C3 clearance grade deep groove ball bearing.
Before assembly, the bearing of idler has been filled with lithium base grease and sealed permanently on both sides, which can realize lifetime maintenance free and extend the service life of the bearing.

3. Shaft
The shaft of idler adopts high precision cold drawn round steel after quenching and tempering treatment. Advanced Chamfer milling machine is used to perform accurate machining at both ends of the shaft, so as to ensure that the axial displacement of the idler is almost zero.

4. Bearing housing
The fabrication of the bearing housing consists of a multi-stage precision automatic pressing operation, which ensure high accuracy of bearing and sealing position.
The idler pipes and bearing housing at both ends are 3mm fully fillet welded at the same time trough CO2 gas shield double-gun automatic welding machine, which gives a minimum of 70% weld penetration,and ensures that the idler even under the high load and high speed operation, still strong and durable.
5. Shell
The shell of idler adopts special ratio-frequency welded pipe with small bending degree and small ellipticity.
The advanced steel tube chamfer cutting off tool machine is used for predsemachining of both ends of pipe, which can effectively guarantee the concentricity of idlers and minimize the rotation resistance of idlers


  Quality design and build

  Our focus on quality starts with sourcing only the best raw materials, rejecting anything that falls outside our strict tolerances.During manufacture your order is checked at each stage before passing through to the next process. This also contributes to our ability to meet orders on time.
