Product NamePortable screen on wheel 1227W Datetime：2022/11/10 15:48:00 |

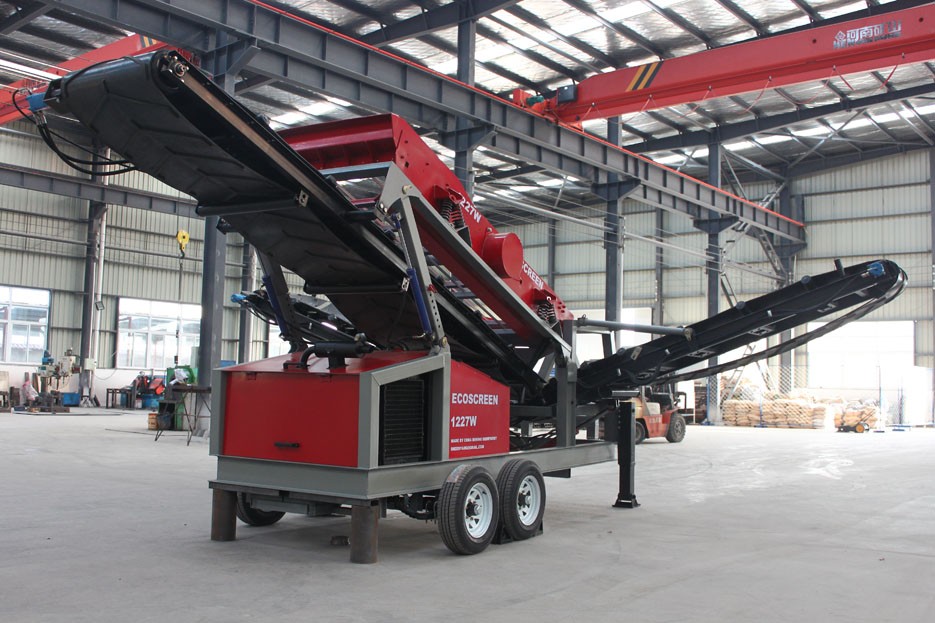

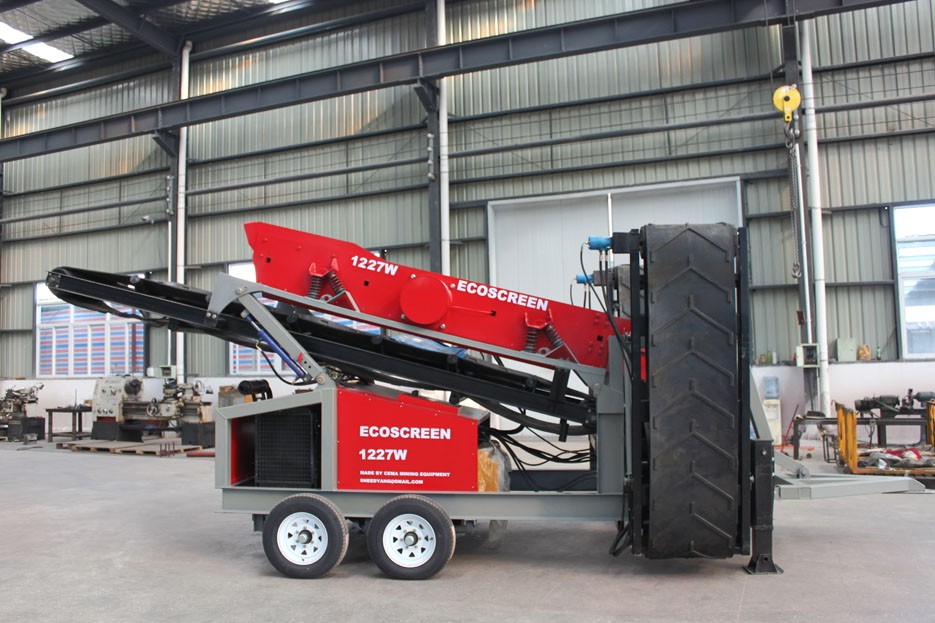

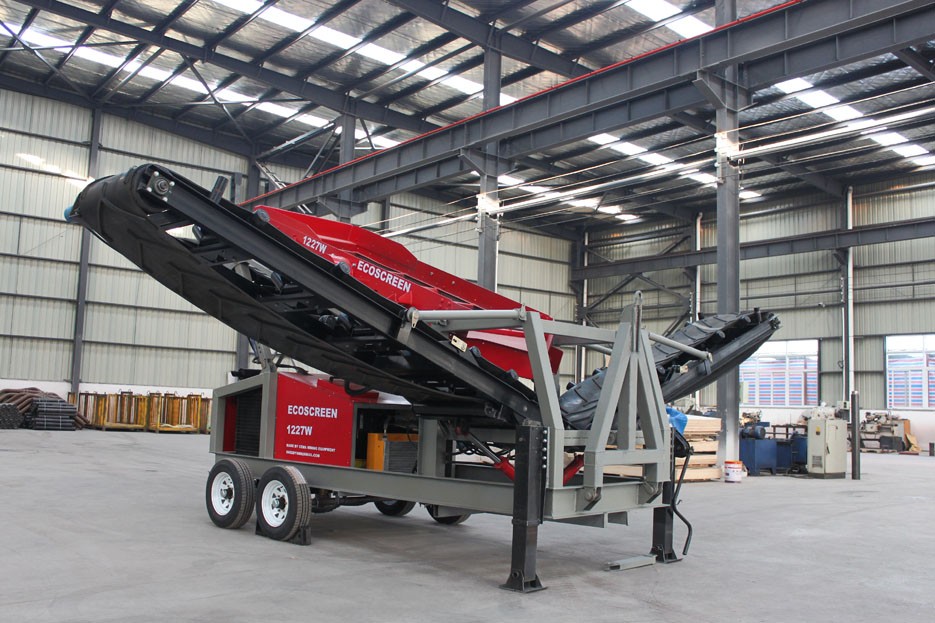

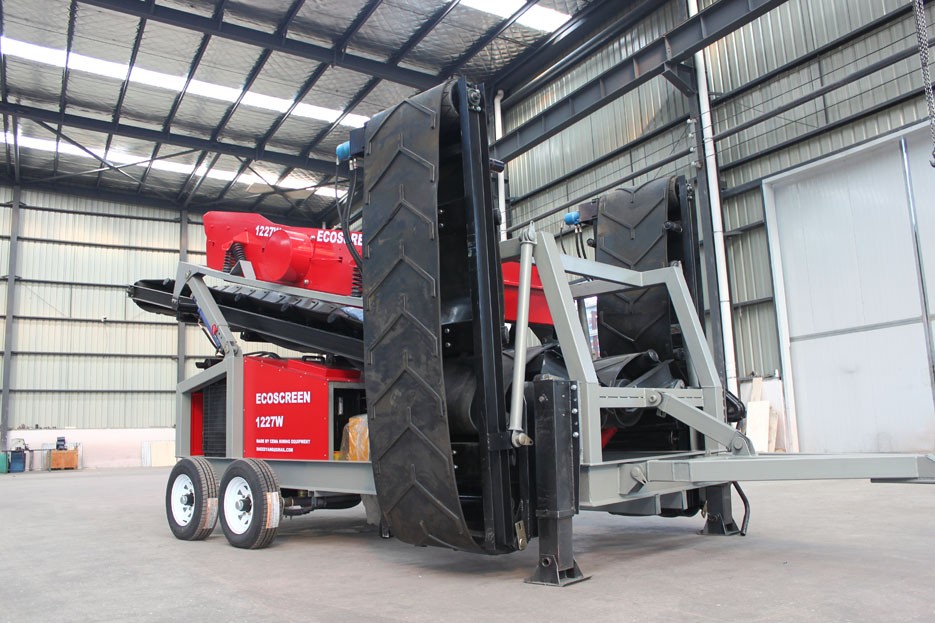

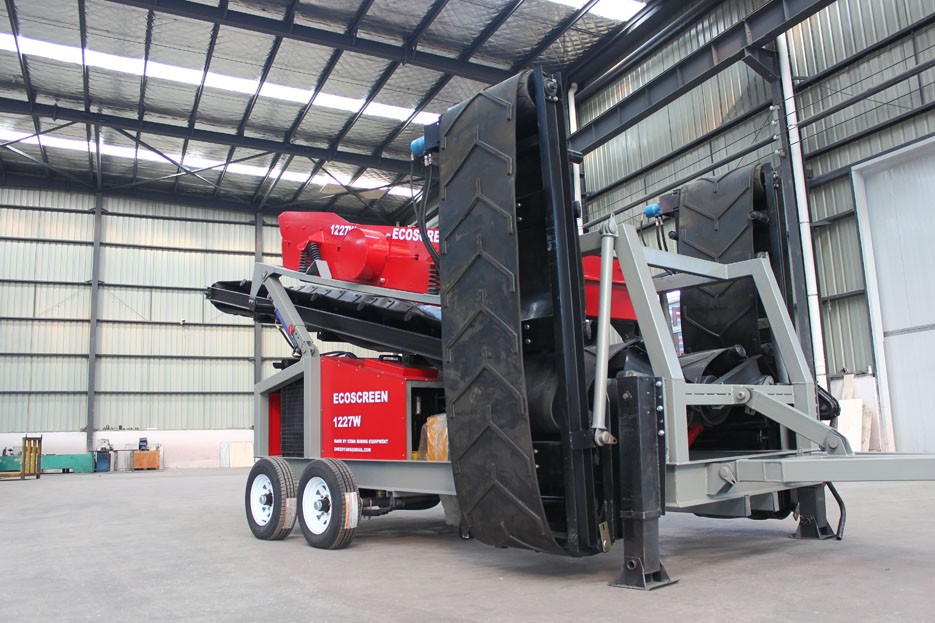

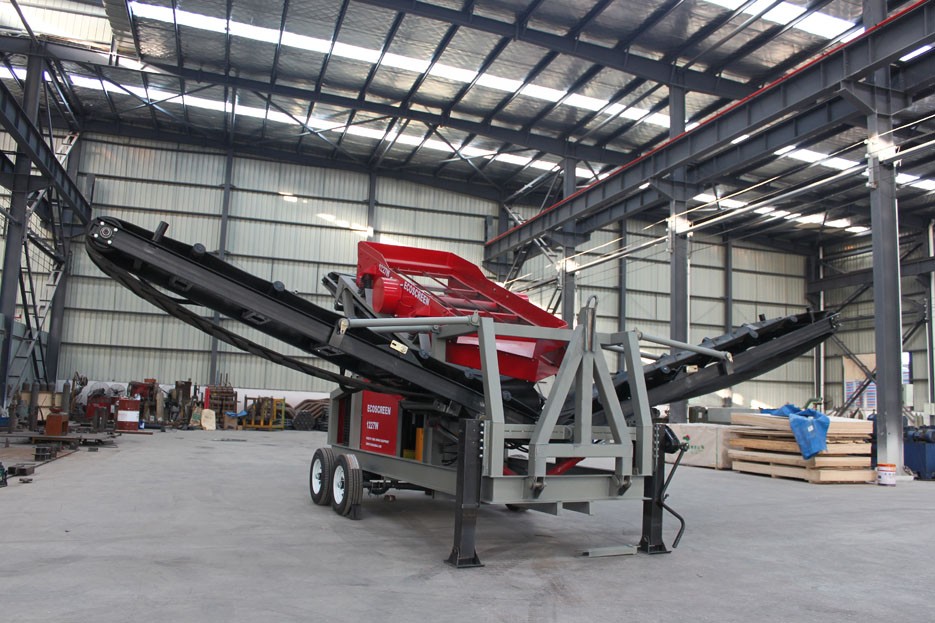

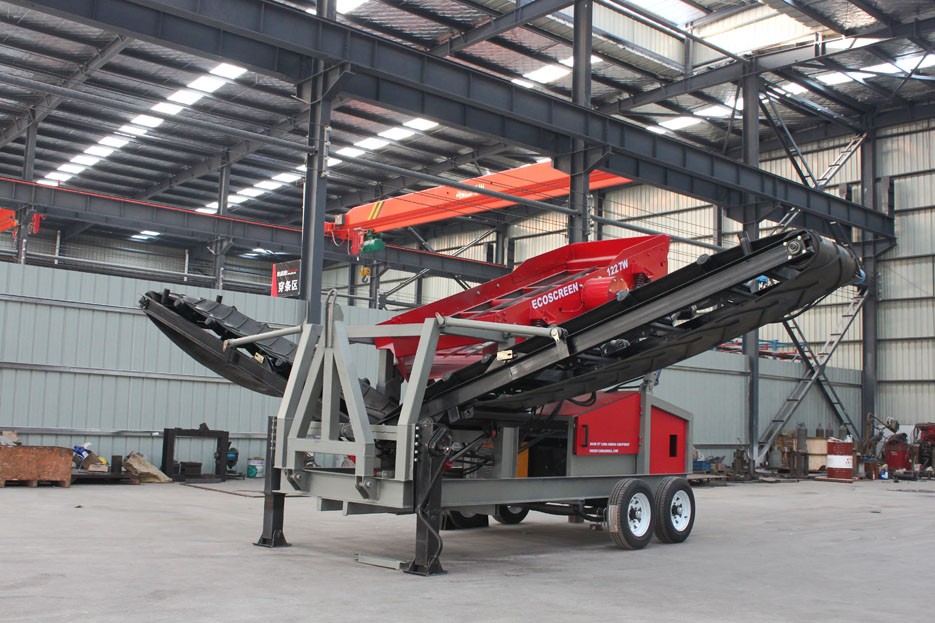

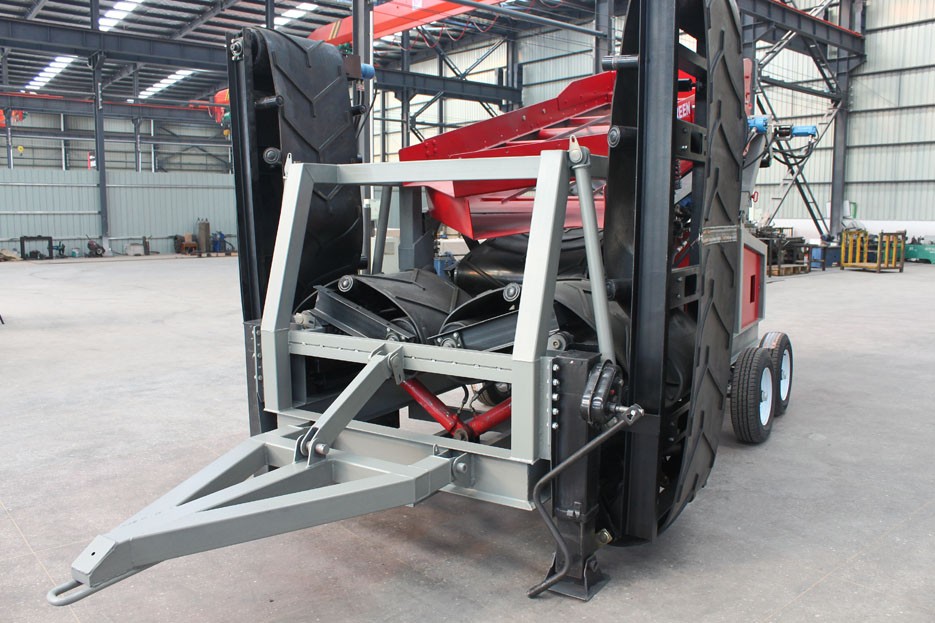

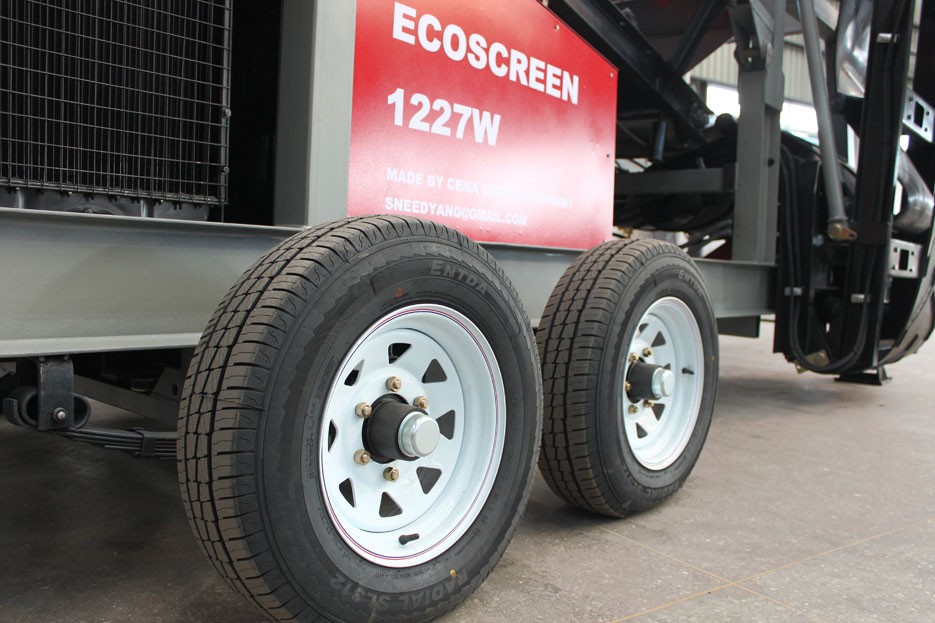

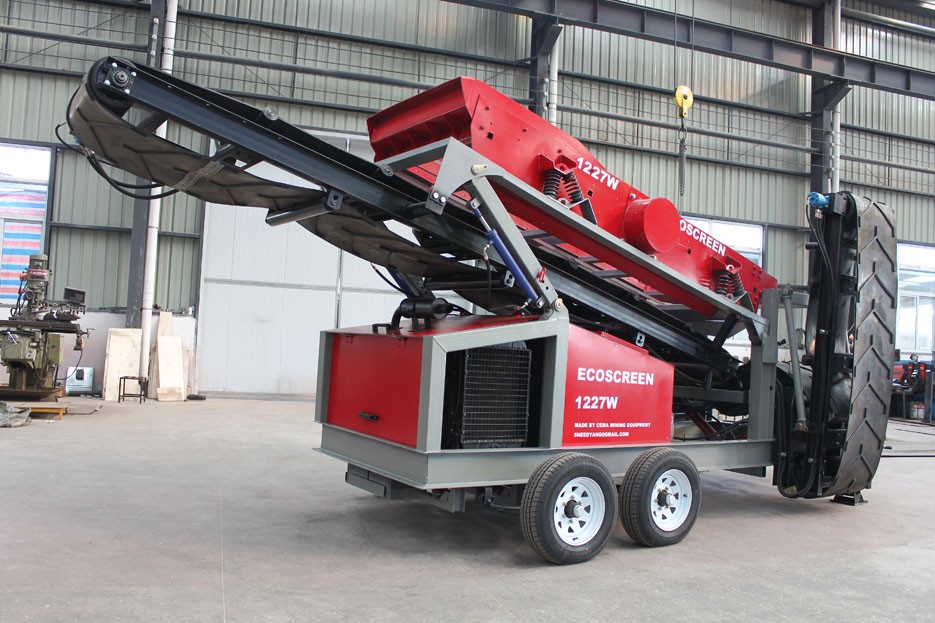

Portable screen on wheel 1227W
With a 1.2m x 2.7m double deck screen box, the screen can offer contractors a clean saleable product, increasing the quality of their material, reducing waste cost, and creating new streams of revenue for their business. the competitive sales price is another reason to help customer to start business quickly. The Ecoscreen can process up to 80 m3 of material every hour and is suitable for all applications.

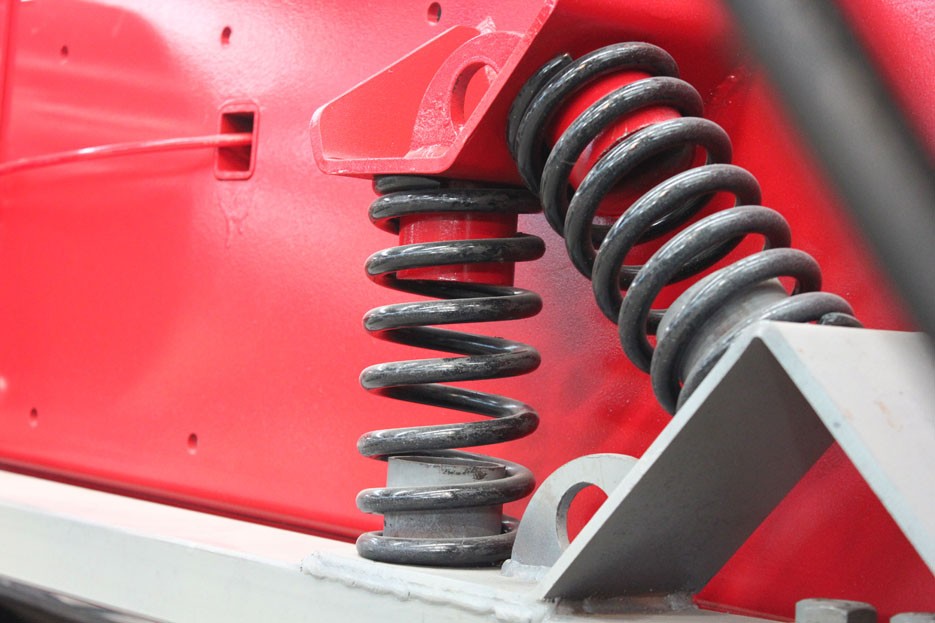

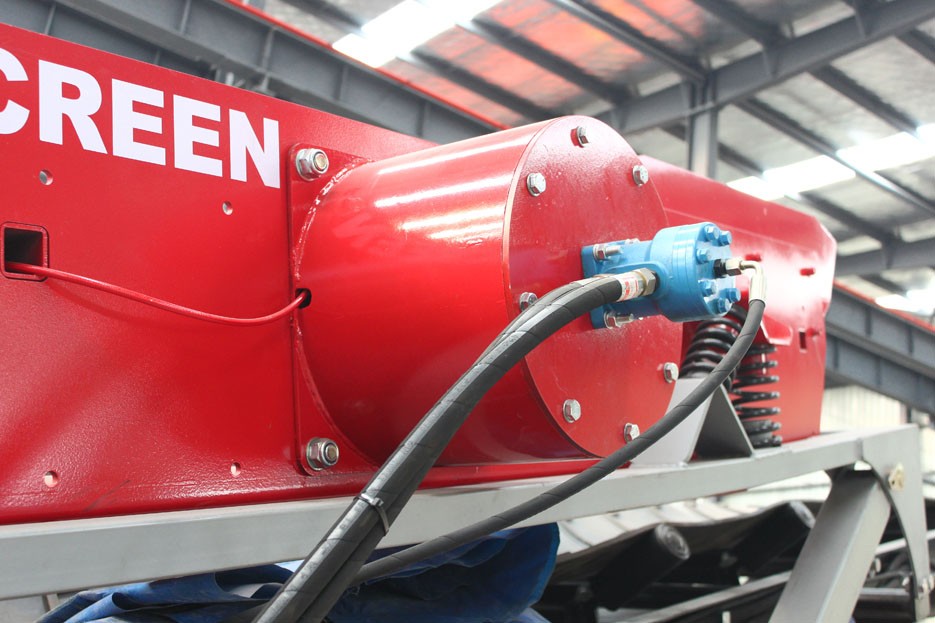

SCREEN BOXTwo deck screenbox Mesh size: 1200mm x 2700mm Drive: Hydraulic motor 51cc Tensioning: Clamp and bolted down Screen angle: 10 to 25 deg Screen shaft speed: 900 rpm Load height: 3000mm
SIDE CONVEYORBelt width: 600mm Belt spec: EP 150 3 PLY Drive drum dia. 236mm Tail drum dia. 220mm Motor: Hydraulic 200cc Shaft speed: 0-110rpm Speed variable: Yes Pile height: 2850mm

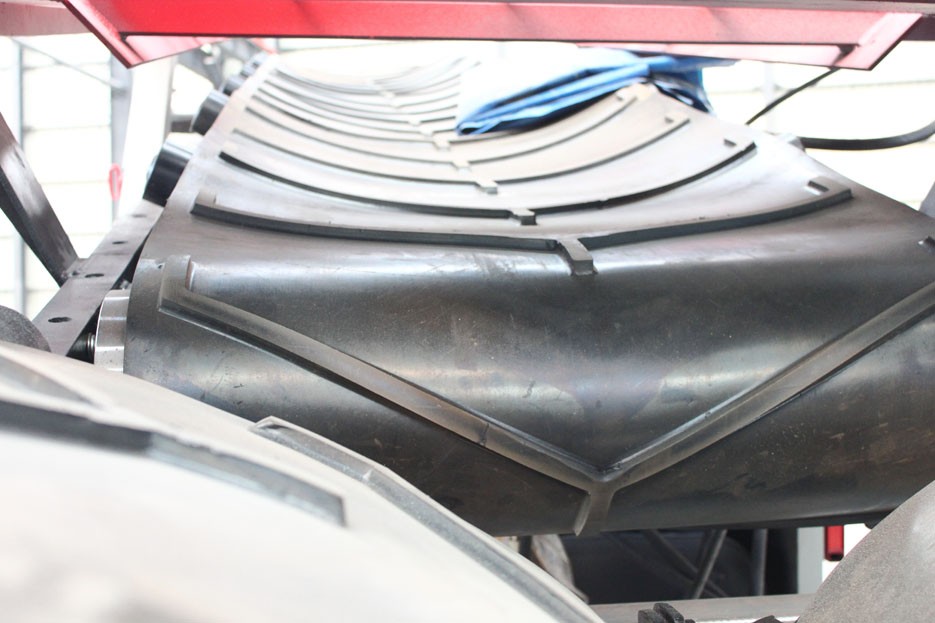

MAIN CONVEYORBelt width: 800mm Belt spec: EP 150 3 PLY Drive drum dia.: 236mm Tail drum dia.: 220mm Motor: Hydraulic motor 400cc Shaft speed: 0-110rpm Speed variable: Yes Pile height:3150mm
POWER PACKEngine: Diesel engine Engine power: 54HP (40kW) Engine speed: 2000 rpm Pump: Double 16/25 Hydraulic tank capacity: 200 L Diesel tank capacity:160L
|
|
|
